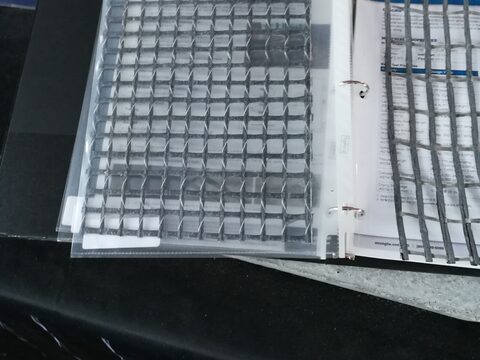

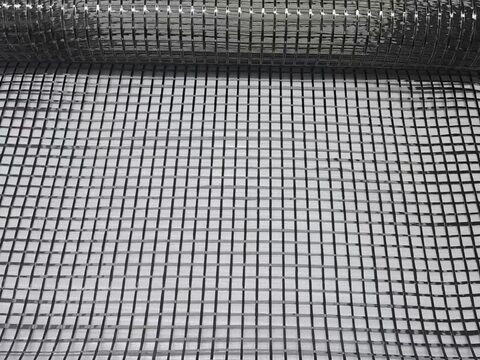

Bidirectional carbon fiber mesh for surface reinforcement and crack control applications.
Bi-directional carbon fibre mesh constructed from high-strength PAN-based carbon fibres in a stable 0°/90° grid geometry, designed for FRCM structural strengthening systems. Embedded in an inorganic cementitious matrix, FCM provides efficient two-directional reinforcement. The rigid grid simplifies placement, eliminates bunching, and ensures consistent fibre distribution across the bonded area.
| Property | Value |
|---|---|
| Fibre Tensile Strength | 4,500 MPa |
| Fibre Elastic Modulus | 240 GPa |
| Elongation | 1.8% |
| Fibre Orientation | Bidirectional (0° + 90°) |
| Grid Opening Size | 10×10 / 20×20 / 30×30 mm, or customised |
| Available Width | 1.0 m / 1.5 m |
| Roll Length | 50 m / roll |
| Colour | Black |
| Fibre Type | PAN-based carbon fibre, high-strength grade |
| Packaging | 50 m / box |
| Storage | Dry, away from sunlight, -5°C to +35°C |
| Compatible With | FMM cementitious matrix, FCA 10/450 CFRP anchor |
